    BBQ Area Fast Assembly Container House Prefab Easy Relocation

    Ask Lasest Price
    Brand Name : INFINITE STARS
    Model Number : D07
    Certification : CE, ISO14001, ISO9001, ISO45001
    Price : USD 1200~1500/Set
    Supply Ability : 2000 Sets PER Month
    MOQ : 7 PCS
    • Product Details
    • Company Profile

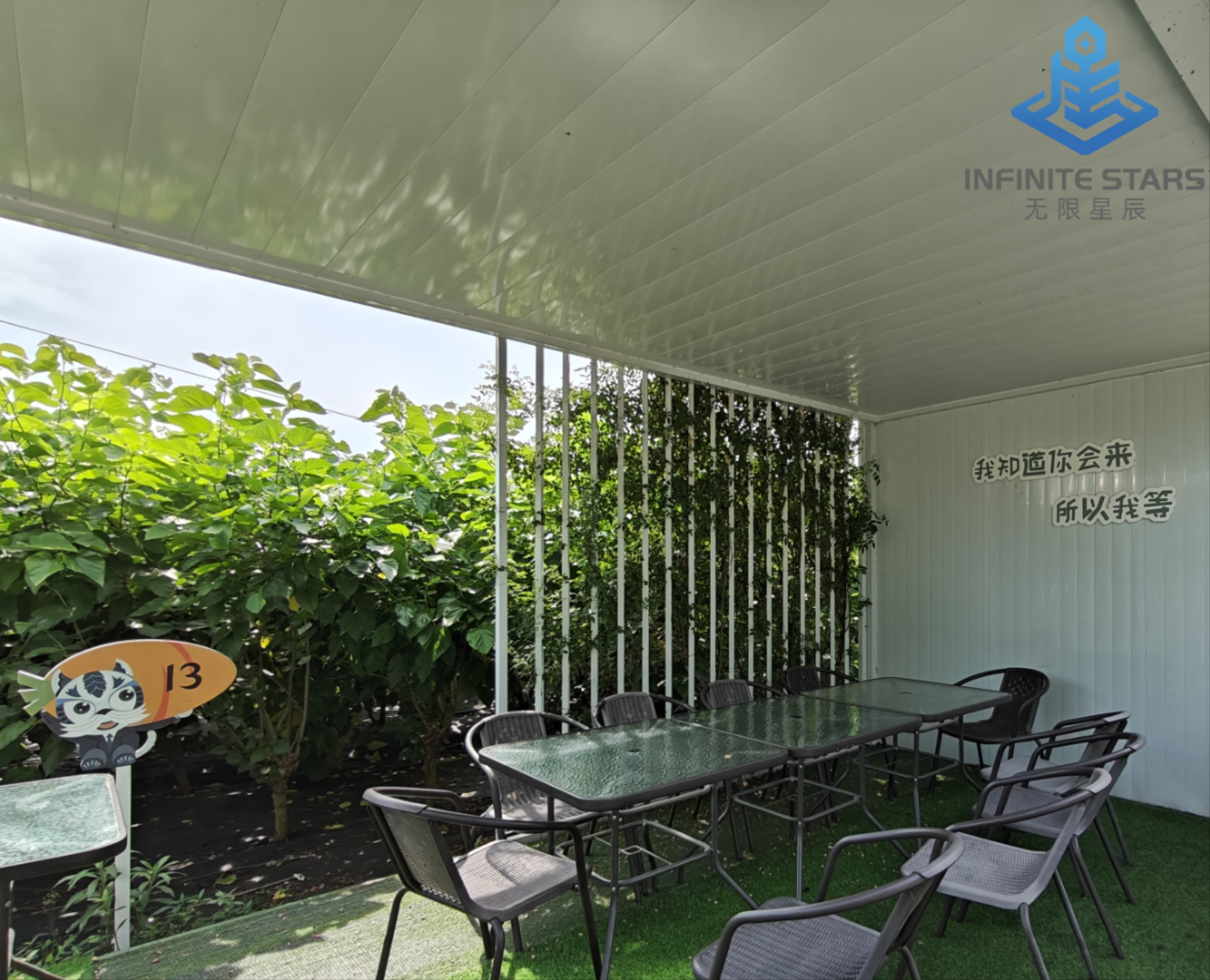

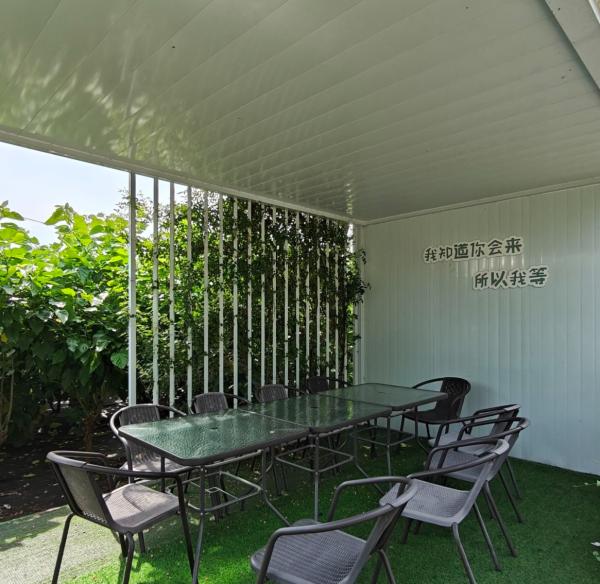

    BBQ Area Fast Assembly Container House Prefab Easy Relocation

    Prefab BBQ Area Detachable Container House Fast Assembly Easy Relocation


    Choosing a detachable container house as a BBQ area offers numerous benefits, including rapid installation, strong portability, environmental sustainability, flexibility in design and layout, as well as enhanced functionality and aesthetics. Its modular nature allows for quick setup and easy relocation, making it an ideal choice for a BBQ area that can be customized to fit various needs and occasions.


    Standard Quick Assembly Container House Datasheet
    Product Specification:
    3-meter standard container
    Length(mm)5950(5730)
    Width(mm)3000(2800)
    Height(mm)2800(2500)
    Center column
    RoofFlat roof, free drainage
    Number of floors≤3
    Design parametersService life5-8 years
    Ground live load1.8KN/㎡
    Roof live load0.5KN/㎡
    Wind load0.6KN/㎡
    Seismic degree8
    Structuralcorner columngalvanized cold rolled section steel, t=2.3mm, material Q235B
    roof main beamgalvanized cold rolled section steel, t=2.3mm, material Q235B
    roof sub-beamGalvanized square steel 5*5, t=1.5mm, radian galvanized square steel 4*6t= 1.2mm material Q235B
    floor main beamgalvanized cold-rolled section steel, t=2.3mm, material Q235B
    floor sub-beamgalvanized square steel 4*8 (5), galvanized square steel 8*8 (4) material Q235B
    PaintGraphene Powder spraying (Electrostatic spraying)
    RoofRoof panel0.40mm thick color steel plate, color white gray
    Ceiling0.25mm thick 811 ceiling, color white gray
    FloorDecorative surface
    basic floor18mm sanding board
    WallThickness50mm thick color steel glass fiber sandwich board; The outer and inner plates are made of 0.3mm aluminum plated zinc color steel plate
    Heat preservation50mm thick glass silk wool, bulk weight ≥60kg/m³, combustion performance is class A non-combustible
    Colorwhite gray PE coating
    DoorSpec(mm)Width X height =920*2030 common door
    MaterialSteel door
    WindowSpec(mm)Front window: width X height =920*1200; Rear window (standard) : width X height =920*1200;
    FramePlastic steel window single glass
    Glasscommon
    ElectricityVoltage220V~250V
    Wireinput power wire is 4 square, AC wire is 4 square, socket wire is 2.5 square, lighting switch wire is 1.5 square
    Circuit breakerHigh break Miniature Circuit breaker (32A)
    Lamp tubeTwo sets of circular LED fluorescent lamps
    Socket3 five-hole socket 10A, 1 three-hole air conditioning socket 16A

    As a wholly-owned subsidiary of Wujiang Saima (established in 2005), Suzhou Stars Integrated Housing Co., Ltd. focuses on foreign trade. As one of the most professional prefabricated house manufacturers in south-east China, we provide customers with all kinds of integrated housing solutions.

    Equipped with complete production lines, including sandwich panel production machines and steel structure production line, with 5000 square meter workshop and professional staff, we already built long-term business with domestic giants like CSCEC and CREC. Also, based on our export experience in the past years, we are furthering our steps to global customers with best product and service.

    As a supplier to overseas customers all over the world, we are very familiar with the manufacturing standards of various countries, such as European standards, American standards, Australian standards, and so on. We have also participated in the construction of many large-scale projects, such as recent 2022 Qatar World Cup camping construction.

    Suzhou Stars Integrated Housing Co., Ltd. mainly has five types of products: folding container house, flat pack container house, detachable container house, modified shipping container (in development), and steel structure construction, which can be widely used in many fields, such as dormitory, camp, office, canteen, shop, toilet and shower, viewing pavilion, firefighting station, isolation ward, etc.
