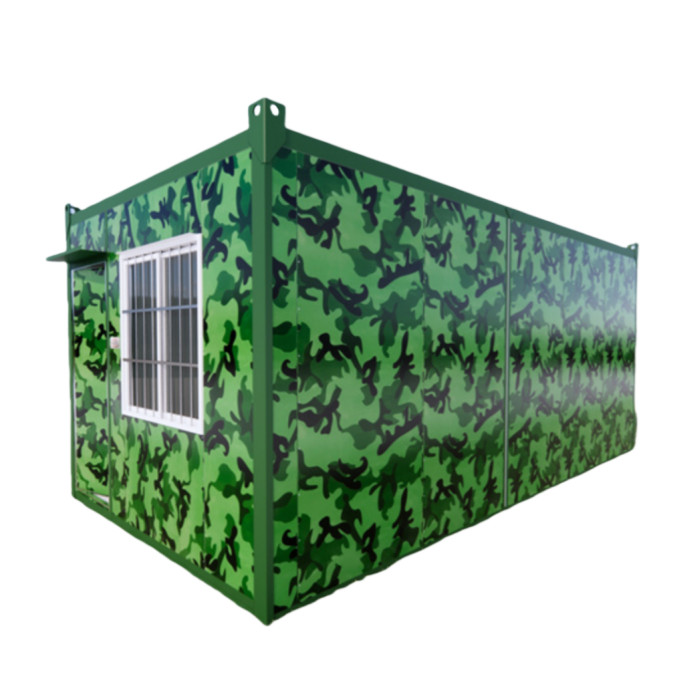

High Mobility Flexibility Container Barracks Military Camp
Environmental Friendliness
Description
Container barracks can be assembled and dismantled quickly,
significantly reducing deployment and withdrawal times. This is
crucial for rapid response and flexibility in military operations.
Due to their modular design, container barracks can be easily
transported long distances using trucks, trains, or ships. This
allows for swift deployment to any desired location.
Container barracks have relatively low manufacturing costs, as they
utilize standardized shipping containers as the primary structure.
Furthermore, their durability and reusability reduce long-term
costs.
Container barracks can be customized and expanded based on needs.
The number and configuration of containers can be adjusted
according to troop size, mission requirements, or environmental
conditions. This flexibility enables them to adapt to various
complex situations.
Container barracks are constructed from steel, making them highly
durable and resistant to corrosion. They can withstand harsh
environmental conditions, including extreme weather and sandstorms.
Container barracks provide good safety measures. They have a sturdy
exterior and interior facilities that can withstand external
threats and adverse weather. Additionally, they can be equipped
with security systems such as access control and surveillance
cameras to enhance safety.
The modular design of container barracks allows for integration and
combination with other military facilities. This helps construct a
complete military base, including command centers, medical
facilities, and warehouses.
Container barracks can be recycled and reused after dismantling,
reducing environmental pollution and waste. Additionally, their
manufacturing process is relatively environmentally friendly as
they utilize standardized shipping containers as the main
structure, minimizing construction waste.
| Standard Quick Assembly Container House Datasheet |
Product Specification:
3-meter standard container | Length(mm) | 5950(5730) |
| Width(mm) | 3000(2800) |
| Height(mm) | 2800(2500) |
| Center column | |
| Roof | Flat roof, free drainage |
| Number of floors | ≤3 |
| Design parameters | Service life | 5-8 years |
| Ground live load | 1.8KN/㎡ |
| Roof live load | 0.5KN/㎡ |
| Wind load | 0.6KN/㎡ |
| Seismic degree | 8 |
| Structural | corner column | galvanized cold rolled section steel, t=2.3mm, material Q235B |
| roof main beam | galvanized cold rolled section steel, t=2.3mm, material Q235B |
| roof sub-beam | Galvanized square steel 5*5, t=1.5mm, radian galvanized square
steel 4*6t= 1.2mm material Q235B |
| floor main beam | galvanized cold-rolled section steel, t=2.3mm, material Q235B |
| floor sub-beam | galvanized square steel 4*8 (5), galvanized square steel 8*8 (4)
material Q235B |
| Paint | Graphene Powder spraying (Electrostatic spraying) |
| Roof | Roof panel | 0.40mm thick color steel plate, color white gray |
| Ceiling | 0.25mm thick 811 ceiling, color white gray |
| Floor | Decorative surface | |
| basic floor | 18mm sanding board |
| Wall | Thickness | 50mm thick color steel glass fiber sandwich board; The outer and
inner plates are made of 0.3mm aluminum plated zinc color steel
plate |
| Heat preservation | 50mm thick glass silk wool, bulk weight ≥60kg/m³, combustion
performance is class A non-combustible |
| Color | white gray PE coating |
| Door | Spec(mm) | Width X height =920*2030 common door |
| Material | Steel door |
| Window | Spec(mm) | Front window: width X height =920*1200; Rear window (standard) :
width X height =920*1200; |
| Frame | Plastic steel window single glass |
| Glass | common |
| Electricity | Voltage | 220V~250V |
| Wire | input power wire is 4 square, AC wire is 4 square, socket wire is
2.5 square, lighting switch wire is 1.5 square |
| Circuit breaker | High break Miniature Circuit breaker (32A) |
| Lamp tube | Two sets of circular LED fluorescent lamps |
| Socket | 3 five-hole socket 10A, 1 three-hole air conditioning socket 16A |
