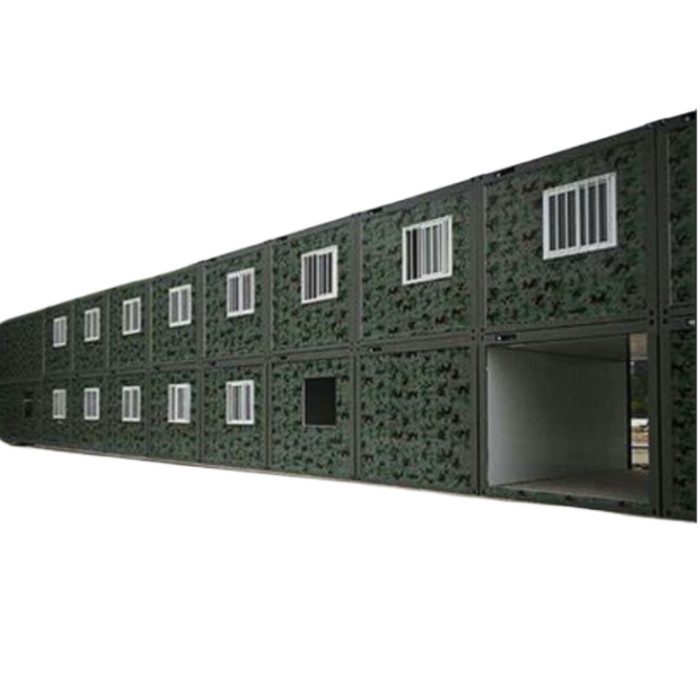

Camouflage Prefabricated Mobile Barracks Emergency Rescue Epidemic
Prevention Relief Camping ContainerHouse
Description
Material: Standard corrugated steel plates are typically used,
providing excellent strength and durability.
Structure: Constructed with a steel frame and welded joints,
ensuring structural stability and safety.
Camouflage Coating: The exterior is painted with camouflage
coating, blending well with military environments and providing a
degree of concealment.
Wall Design: The walls are made of color steel sandwich panels,
with a modular design that allows for easy assembly and a smooth,
flat surface.
Modular Configuration: These containers can be stacked vertically
or horizontally, or customized according to specific needs,
offering flexibility and versatility.
Complete Interior Facilities: Internal finishes include tiled
floors, doors, windows, security screens, lighting, sockets,
switches, exhaust fans, and air conditioning units, making them
suitable for use as dormitories, offices, command centers, meeting
rooms, and more.
Easy Transportation and Installation: No foundation is required,
facilitating transportation, lifting, and quick installation.
Excellent Thermal and Sound Insulation: High-quality materials
provide superior thermal and sound insulation properties.
Strong Weather Resistance: Resistant to acids, alkalis, salt spray,
and other corrosive elements, suitable for use in damp and
corrosive environments.
Stability and Durability: These containers are highly stable and
have a long service life, often exceeding 20 years.
Suitable for various scenarios, including military camps,
construction sites, and temporary shelters in disaster-affected
areas, providing a safe and comfortable living and working
environment for personnel.
| Standard Quick Assembly Container House Datasheet |
Product Specification:
3-meter standard container | Length(mm) | 5950(5730) |
| Width(mm) | 3000(2800) |
| Height(mm) | 2800(2500) |
| Center column | |
| Roof | Flat roof, free drainage |
| Number of floors | ≤3 |
| Design parameters | Service life | 5-8 years |
| Ground live load | 1.8KN/㎡ |
| Roof live load | 0.5KN/㎡ |
| Wind load | 0.6KN/㎡ |
| Seismic degree | 8 |
| Structural | corner column | galvanized cold rolled section steel, t=2.3mm, material Q235B |
| roof main beam | galvanized cold rolled section steel, t=2.3mm, material Q235B |
| roof sub-beam | Galvanized square steel 5*5, t=1.5mm, radian galvanized square
steel 4*6t= 1.2mm material Q235B |
| floor main beam | galvanized cold-rolled section steel, t=2.3mm, material Q235B |
| floor sub-beam | galvanized square steel 4*8 (5), galvanized square steel 8*8 (4)
material Q235B |
| Paint | Graphene Powder spraying (Electrostatic spraying) |
| Roof | Roof panel | 0.40mm thick color steel plate, color white gray |
| Ceiling | 0.25mm thick 811 ceiling, color white gray |
| Floor | Decorative surface | |
| basic floor | 18mm sanding board |
| Wall | Thickness | 50mm thick color steel glass fiber sandwich board; The outer and
inner plates are made of 0.3mm aluminum plated zinc color steel
plate |
| Heat preservation | 50mm thick glass silk wool, bulk weight ≥60kg/m³, combustion
performance is class A non-combustible |
| Color | white gray PE coating |
| Door | Spec(mm) | Width X height =920*2030 common door |
| Material | Steel door |
| Window | Spec(mm) | Front window: width X height =920*1200; Rear window (standard) :
width X height =920*1200; |
| Frame | Plastic steel window single glass |
| Glass | common |
| Electricity | Voltage | 220V~250V |
| Wire | input power wire is 4 square, AC wire is 4 square, socket wire is
2.5 square, lighting switch wire is 1.5 square |
| Circuit breaker | High break Miniature Circuit breaker (32A) |
| Lamp tube | Two sets of circular LED fluorescent lamps |
| Socket | 3 five-hole socket 10A, 1 three-hole air conditioning socket 16A |
Company introduction
As a wholly-owned subsidiary of Wujiang Saima (established in
2005), Suzhou Stars Integrated Housing Co., Ltd. focuses on foreign
trade. As one of the most professional prefabricated house
manufacturers in south-east China, we provide customers with all
kinds of integrated housing solutions.
Equipped with complete production lines, including sandwich panel
production machines and steel structure production line, with 5000
square meter workshop and professional staff, we already built
long-term business with domestic giants like CSCEC and CREC. Also,
based on our export experience in the past years, we are furthering
our steps to global customers with best product and service.
As a supplier to overseas customers all over the world, we are very
familiar with the manufacturing standards of various countries,
such as European standards, American standards, Australian
standards, and so on. We have also participated in the construction
of many large-scale projects, such as recent 2022 Qatar World Cup
camping construction.
Company photo
Workshop
Storage and shipping
