Rapid Deployment Flexibility Container Barracks Comprehensive
Support Assurance
Description
Exploring New Frontiers

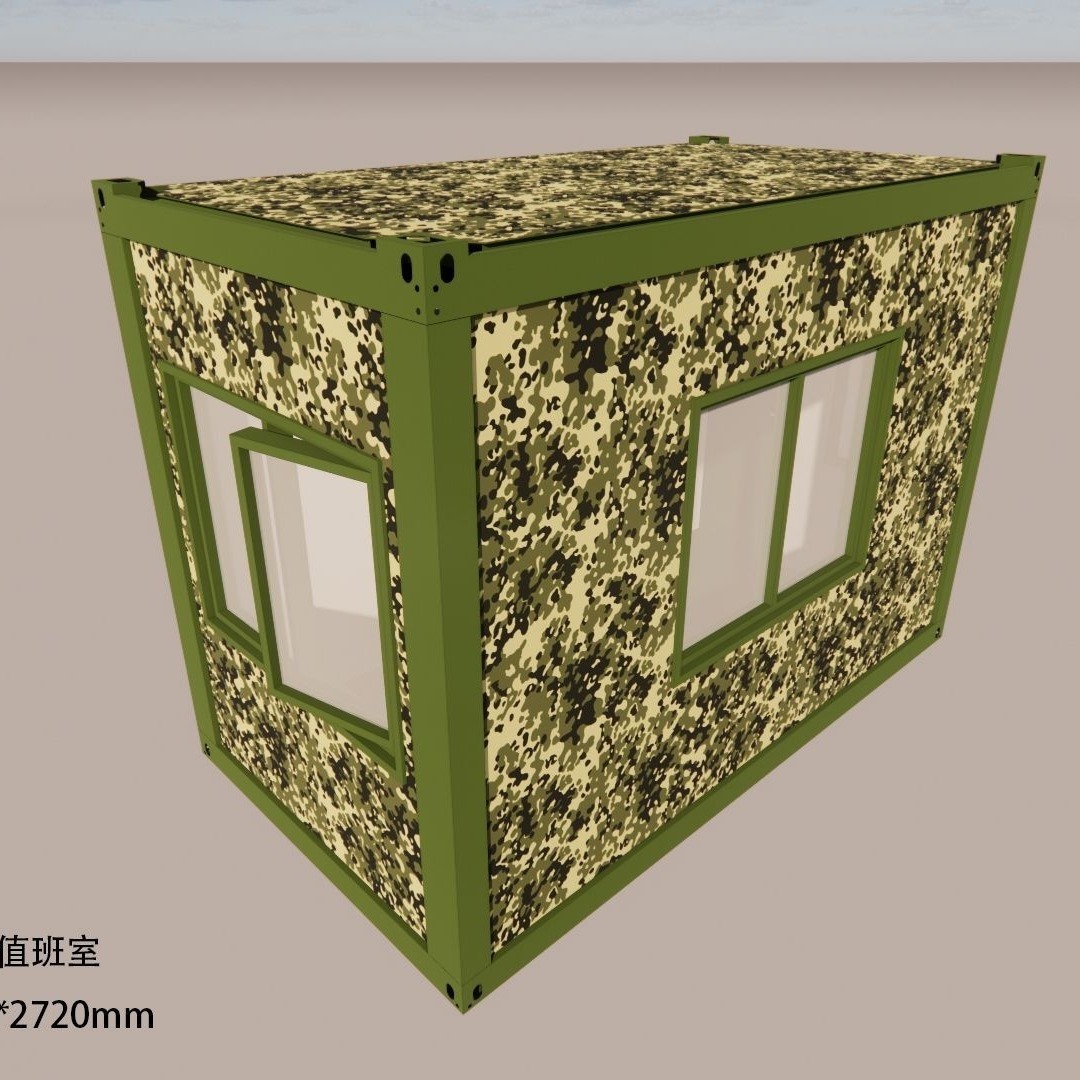

The containerized military camp is a perfect blend of military
modernization and innovation. Utilizing the world's most advanced
container technology, we have crafted a practical and highly
efficient military lodging facility that caters to your needs in
various complex environments.
Sturdy, Durable, and Secure
Built with high-strength steel, the containerized military camp is
exceptionally resistant to compression, wind, and earthquakes.
Whether it's the desert, mountains, or the polar regions, it
provides your troops with a safe and stable living environment.
Fully Equipped for Comfort and Convenience
The interior of the camp is equipped with all necessary facilities,
including beds, storage cabinets, bathrooms, and showers, ensuring
your troops enjoy a comfortable living experience even in harsh
conditions. Additionally, advanced communication and electrical
systems ensure smooth information transmission and daily power
supply.
Green and Environmentally Friendly
The containerized military camp prioritizes environmental
protection and energy conservation. It utilizes efficient
energy-saving materials and equipment to reduce energy consumption
and waste emission. Furthermore, it is equipped with solar panels
and rainwater collection systems to harness natural resources,
minimizing the impact on the environment.
Rapid Deployment and Flexibility
Adopting a modular design, the containerized military camp can be
quickly assembled and dismantled, significantly reducing
construction time. Additionally, we offer various configuration
options to suit your specific needs, ensuring flexibility and
adaptability in different scenarios.
Comprehensive Support and Assurance
We provide comprehensive after-sales service and technical support
to ensure you have no worries during use. Moreover, we offer
customized services to tailor the design of your containerized
military camp according to your unique requirements.
| Standard Quick Assembly Container House Datasheet |
Product Specification:
3-meter standard container | Length(mm) | 5950(5730) |
| Width(mm) | 3000(2800) |
| Height(mm) | 2800(2500) |
| Center column | |
| Roof | Flat roof, free drainage |
| Number of floors | ≤3 |
| Design parameters | Service life | 5-8 years |
| Ground live load | 1.8KN/㎡ |
| Roof live load | 0.5KN/㎡ |
| Wind load | 0.6KN/㎡ |
| Seismic degree | 8 |
| Structural | corner column | galvanized cold rolled section steel, t=2.3mm, material Q235B |
| roof main beam | galvanized cold rolled section steel, t=2.3mm, material Q235B |
| roof sub-beam | Galvanized square steel 5*5, t=1.5mm, radian galvanized square
steel 4*6t= 1.2mm material Q235B |
| floor main beam | galvanized cold-rolled section steel, t=2.3mm, material Q235B |
| floor sub-beam | galvanized square steel 4*8 (5), galvanized square steel 8*8 (4)
material Q235B |
| Paint | Graphene Powder spraying (Electrostatic spraying) |
| Roof | Roof panel | 0.40mm thick color steel plate, color white gray |
| Ceiling | 0.25mm thick 811 ceiling, color white gray |
| Floor | Decorative surface | |
| basic floor | 18mm sanding board |
| Wall | Thickness | 50mm thick color steel glass fiber sandwich board; The outer and
inner plates are made of 0.3mm aluminum plated zinc color steel
plate |
| Heat preservation | 50mm thick glass silk wool, bulk weight ≥60kg/m³, combustion
performance is class A non-combustible |
| Color | white gray PE coating |
| Door | Spec(mm) | Width X height =920*2030 common door |
| Material | Steel door |
| Window | Spec(mm) | Front window: width X height =920*1200; Rear window (standard) :
width X height =920*1200; |
| Frame | Plastic steel window single glass |
| Glass | common |
| Electricity | Voltage | 220V~250V |
| Wire | input power wire is 4 square, AC wire is 4 square, socket wire is
2.5 square, lighting switch wire is 1.5 square |
| Circuit breaker | High break Miniature Circuit breaker (32A) |
| Lamp tube | Two sets of circular LED fluorescent lamps |
| Socket | 3 five-hole socket 10A, 1 three-hole air conditioning socket 16A |
Company introduction
As a wholly-owned subsidiary of Wujiang Saima (established in
2005), Suzhou Stars Integrated Housing Co., Ltd. focuses on foreign
trade. As one of the most professional prefabricated house
manufacturers in south-east China, we provide customers with all
kinds of integrated housing solutions.
Equipped with complete production lines, including sandwich panel
production machines and steel structure production line, with 5000
square meter workshop and professional staff, we already built
long-term business with domestic giants like CSCEC and CREC. Also,
based on our export experience in the past years, we are furthering
our steps to global customers with best product and service.
As a supplier to overseas customers all over the world, we are very
familiar with the manufacturing standards of various countries,
such as European standards, American standards, Australian
standards, and so on. We have also participated in the construction
of many large-scale projects, such as recent 2022 Qatar World Cup
camping construction.
